Application

An Assembly Group for use as a guided support with the pipe clamp Stabil D-3G. The Assembly Group is designed for use with the Sikla 41 channel system. The height is adjusted using the Threaded Rod M10. The pipe clamp with sound absorption lining ensures sound absorption in accordance with DIN 4109.

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

Parts list:

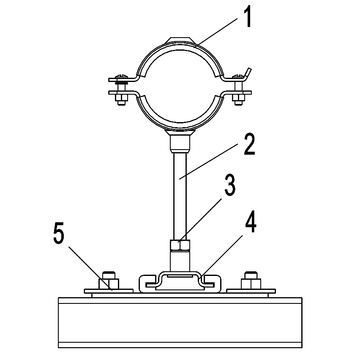

Item 1 Pipe Clamp Stabil D-3G with lining
Assembly Kit MKit MS41 S M10 / L M10 consists of:
Item 2 Threaded Rod GST M10 x 200
Item 3 Hexagon Nut NT M10
Item 4 Slide Set GS 2G-PL / Slide Set GS 2G2-PL
Item 5 T-Head Bolt TBO HZ41 M10 x 20

Installation

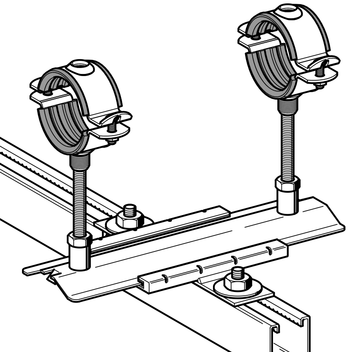

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

Technical Data

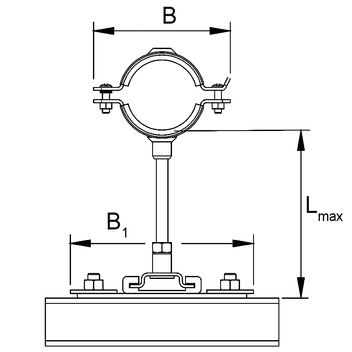

L_{max, vertical} = 150 mm
L_{max, horizontal} = not recommended
