Assembly Groups
Application
An Assembly Group for use as a guided support with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2".
Scope of delivery
Each Assembly Group is pre-assembled, packed and labeled.

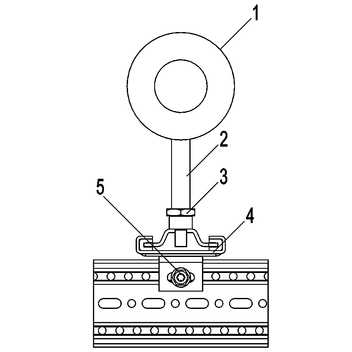

Parts list:
Item 1 Chilled Water Clamp RB
Assembly Kit MKit FR F 100 S 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT 1/2“
Item 4 Slide Set GS F100 1G
Item 5 Self Forming Screw FLS F
Installation
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
Technical Data

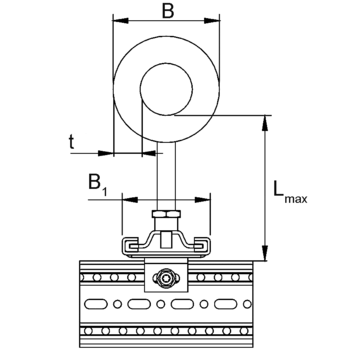

Lmax, vertical = 200 mm
Lmax, horizontal = not recommended
| Material: | |
| Assembly parts: | Steel, HCP |
| Bolts and nuts: | Steel, HCP |
| Insulating body: | PUR foam (250 kg/m3 , B2) µ = 1200, λ = 0,045 W/mK (0°C) |
| Area of use: | -50°C to +105°C |
| Type | Nominal widths [DN] |
B1 [mm] |
B [mm] |
t [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|---|---|---|
| 21/30 | 15 | 102 | 81 | 30 | 1.90 | 1 | 113869 |
| 27/30 | 20 | 102 | 87 | 30 | 1.90 | 1 | 113870 |
| 33/30 | 25 | 102 | 93 | 30 | 1.91 | 1 | 113871 |
| 42/30 | 32 | 102 | 102 | 30 | 1.92 | 1 | 113872 |
| 48/30 | 40 | 102 | 108 | 30 | 1.92 | 1 | 113873 |
| 60/30 | 50 | 102 | 120 | 30 | 2.01 | 1 | 113874 |
| 76/30 | 65 | 102 | 136 | 30 | 2.13 | 1 | 113875 |
| 89/30 | 80 | 102 | 149 | 30 | 2.18 | 1 | 113876 |
| 114/40 | 100 | 102 | 195 | 40 | 2.76 | 1 | 113877 |
