Assembly Groups
Application

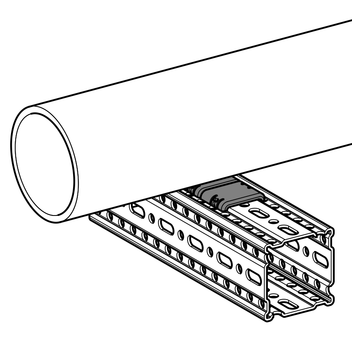

An Assembly Group for the supporting of pipes without complex requirements and without heat insulation. This allows free sliding of the pipe in all dimensions on the Beam Section TP F 80.
Scope of delivery
Each Assembly Group is pre-assembled, packed and labeled. An Assembly Group comprises 3 U-UB pads.

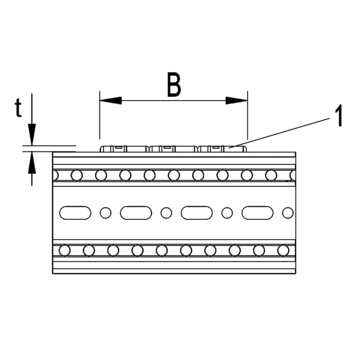

Parts list:
Item 1 Pad U-UB F 80
Installation
According to the anticipated sideways movement of the supported pipes, 1 to 3 U-UB pads should be clicked into the beam section.
| Number U-UB pad | Width B [mm] | t [mm] |
|---|---|---|
| 1 | 40 | 5 |
| 2 | 80 | 5 |
| 3 | 120 | 5 |
Technical Data
| Material: | Polyamide PA 6.0 |
| Area of use: | -20°C to +130°C |
| Type | Nominal widths [DN] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|
| F 80 | 15 - 150 | 0.03 | 1 | 112742 |
