Assembly Groups
Application
An Assembly Group for the creation of guided supports for pipes without complex requirements and without heat insulation. As an alternative to U-bolts, this U-clamp is ideal for space-saving, direct assembly on the supporting structure. The slide plate reduces the friction between the pipe and supporting structure. A galvanic separation between the pipe and U-clamp and the supporting structure is achieved through the captive plastic linings and slide plate, meaning that VA pipes can also be secured, for example.
Scope of delivery
Each Assembly Group is pre-assembled, packed and labeled.

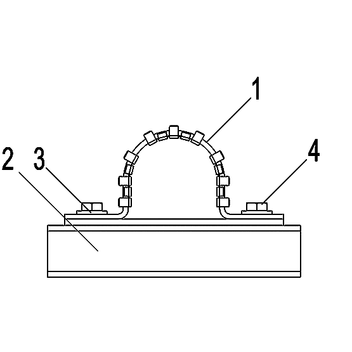

Parts list:
Item 1 U-Camp RUC I
Assembly Kit MKit MS RUC I consists of:
Item 2 Threaded Plate NT CC 41-M10
Item 3 U Washer US 10/125
Item 4 Hexagon Bolt SKT M10 x 25
Installation
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
Technical Data
| Material: | |
| Clamp body: | Steel, HCP |
| Lining and slide plate: | Thermoplastic resins |
| Area of use: | -20°C to +90°C (at lining and slide plate) |
| Type | Nominal widths [DN] |

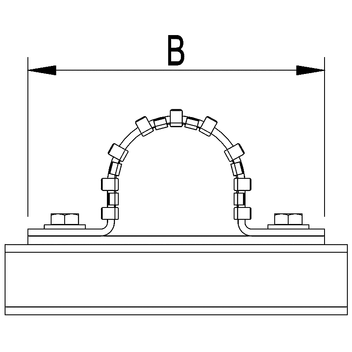

B [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|---|
| 27 | 15 | 134 | 0.34 | 1 | 114670 |
| 33 | 20 | 140 | 0.35 | 1 | 114671 |
| 40 | 25 | 147 | 0.38 | 1 | 114672 |
| 48 | 32 | 155 | 0.40 | 1 | 114673 |
| 55 | 40 | 161 | 0.42 | 1 | 114674 |
| 67 | 50 | 173 | 0.47 | 1 | 114675 |
| 83 | 65 | 189 | 0.54 | 1 | 114676 |
| 95 | 80 | 202 | 0.58 | 1 | 114677 |
| 121 | 100 | 227 | 0.67 | 1 | 114678 |
