Assembly Groups
Application
An Assembly Group containing components to make up a permanent pipe connection with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the 100 beam system and steel beams up to a flange width of 100 mm. It is connected using the Assembly Set MS 5P, and the height is adjusted via the Threaded Tube ½”.
Scope of delivery
Each Assembly Group is pre-assembled, packed and labeled.

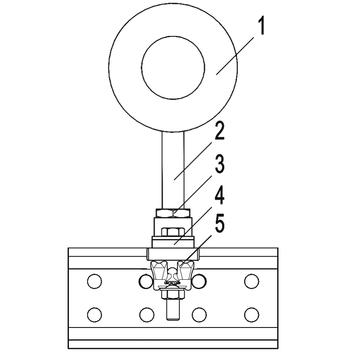

| Parts list: | |
| Item 1 | Chilled Water Clamp RB |
| Assembly Kit MKit F 80 1/2" consists of: | |
| Item 2 | Threaded Tube GR 1/2" x 200 |
| Item 3 | Locking Nut NT G 1/2" |
| Item 4 | Mounting Plate GPL Stabil R1/2"-100 |
| Item 5 | Beam Clip SPA 5P AU M12 HCP |
| Hexagon Bolt M12x60 HCP | |
| Hexagon Nut M12 HCP | |
| Washer HCP |
Installation
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
Technical Data

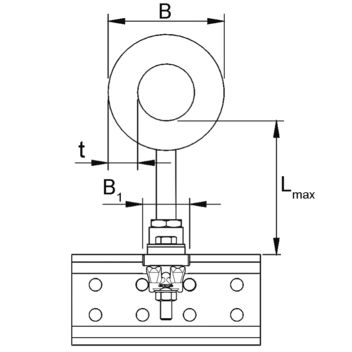

Lmax, vertical = 200 mm
Lmax, horizontal = 150 mm
| Material: | |
| Connecting parts: | Steel, HCP |
| Bolts and nuts: | Steel, HCP |
| Insulating body: | PUR foam (250 kg/m3 , B2), µ = 1200 λ = 0,045 W/mK (0°C) |
| Area of use: | -50°C to +105°C |
| Type | Nominal widths [DN] |
B1 [mm] |
B [mm] |
t [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|---|---|---|
| 21/30 | 15 | 50 | 81 | 30 | 1.65 | 1 | 112733 |
| 27/30 | 20 | 50 | 87 | 30 | 1.65 | 1 | 112734 |
| 33/30 | 25 | 50 | 93 | 30 | 1.66 | 1 | 112735 |
| 42/30 | 32 | 50 | 102 | 30 | 1.67 | 1 | 112736 |
| 48/30 | 40 | 50 | 108 | 30 | 1.67 | 1 | 112737 |
| 60/30 | 50 | 50 | 120 | 30 | 1.76 | 1 | 112738 |
| 76/30 | 65 | 50 | 136 | 30 | 1.88 | 1 | 112739 |
| 89/30 | 80 | 50 | 149 | 30 | 1.93 | 1 | 112740 |
| 114/40 | 100 | 50 | 195 | 40 | 2.51 | 1 | 112741 |
