Assembly System siMetrix 46
Application
Implementation of a cross connection between the different Sikla systems, siMetrix, siFramo and Siconnect.
Type MPH PRO 46 W for concrete connection.
Scope of delivery
| Typ PRO 46 - 41: | pre-assembled in a set with 2 x Blocksets |
| Typ MS 41 - 46: | pre-assembled in a set with 2 x Speed Nuts |
Installation

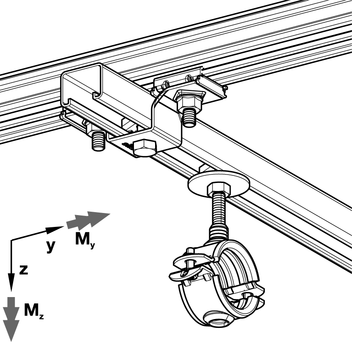

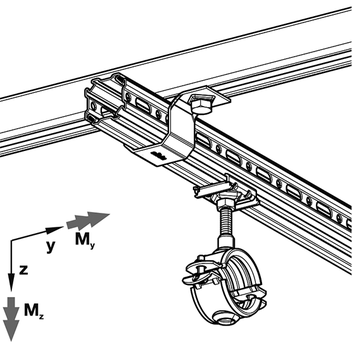

Connection of a Profile PRO 46 to a beam section TP F 80 or 100 with self forming screws FLS F. The combination of the Profile PRO 46 and Channel MS 41 is made using speed nuts. The cross connection of the Channel MS 41 to the Profile PRO 46 is made on both sides with the block PBH 46.
Technical Data

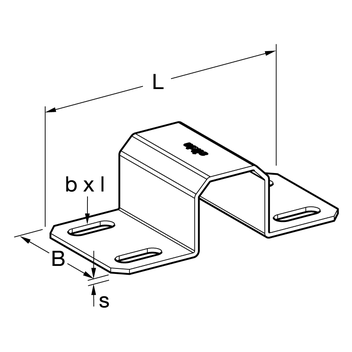

| Type | L [mm] | B [mm] | s [mm] | b x l [mm] |
|---|---|---|---|---|
| MPH F 80 - 46 | 162 | 80 | 3.0 | 20 x 11 |
| MPH F 100 - 46 | 162 | 100 | 3.0 | 20 x 11 |
| MPH PRO 46 - 41 | 127 | 40 | 2.5 | - |
| MPH MS 41 - 46 | 132 | 40 | 2.5 | - |
| MPH PRO 46 W | 132 | 40 | 2.5 | - |
| Type | Fx [kN] | Fy [kN] | Fz [kN] | My [kNm] | Mz [kNm] |
|---|---|---|---|---|---|
| MPH F 80 - 46 | 0.32 | 12.0 | 10.0 | 0.61 | 0.55 |
| MPH F 100 - 46 | 0.36 | 14.0 | 12.5 | 0.99 | 0.92 |
| MPH PRO 46 - 41 | 0.32 | 1.06 | 5.73 | 0.10 | 0.30 |
| MPH MS 41 - 46 | 0.19 | 2.67 | 6.0 | 0.10 | 0.12 |
| MPH PRO 46 W | 0.32 | 1.06 | 5.73 | 0.10 | 0.30 |
| Material | Steel, HCP |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| MPH F 80 - 46 | 0.42 | 15 | 802546 |
| MPH F 100 - 46 | 0.54 | 10 | 802547 |
| MPH PRO 46 - 41 | 0.39 | 10 | 803866 |
| MPH MS 41 - 46 | 0.15 | 10 | 803867 |
| MPH PRO 46 W | 0.16 | 20 | 805343 |
