Channel System 41
Application
Suitable for Channels MS 41 HCP.
Technical Data
| M10 | M12 | M16 | |
| Tightening torque 8.8 1) [Nm] | 40 | 80 | 80 |
| 1) | Using lower steel classes, the value are to be reduced accordingly. |

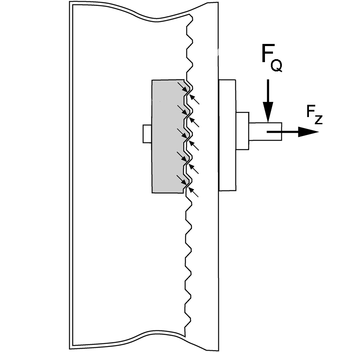

| Channel thickness [mm] | M10 FZ ≤ [kN] | M12 FZ ≤ [kN] | M16 FZ ≤ [kN] | M10 FQ ≤ [kN] | M12 FQ ≤ [kN] | M16 FQ ≤ [kN] | |
|---|---|---|---|---|---|---|---|
| 1.5 | 6.0 | 7.5 | 7.5 | 5.5 | 7.5 | 6 | |
| 2.0 | 7.5 | 10 | 10 | 5.5 | 9 | 6 | |
| 2.5 | 8.5 | 11 | 11 | 5.5 | 9 | 6 | |
| 3.0 | 8.5 | 13 | 13 | 5.5 | 9 | 6 |
Note: The permissible load capacities of the channels are to be respected.
| Material: | Steel, HCP |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| HZ 41-M10 | 0.03 | 50 | 162115 |
| HZ 41-M12 | 0.06 | 50 | 162133 |
| HZ 41-M16 | 0.05 | 50 | 182279 |
