Application

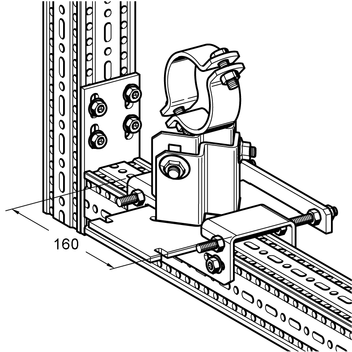

Element for modification of Sliding Pipe Shoes to Fixed Point Pipe Shoes.

Installation

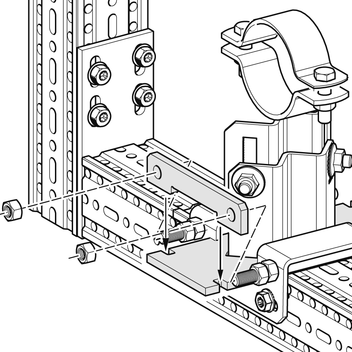

The slide plate of the Pipe Shoe is disassembled. Connection to Beam Sections TP F 80, 80/30, 100 and 100/160 by means of 4 Self-Forming Screws FLS F.

Axial fixed point forces can only be attained by the professional use of anti-slip protections (e.g. cleats, stoppers). Those have to be planned during the design of the piping and are on the responsibilty of the piping manufacturer.

Technical Data
