Process industry

Pipe Shoes

up to NB 80
from NB 100 onwards

Measurements

view as PDF file

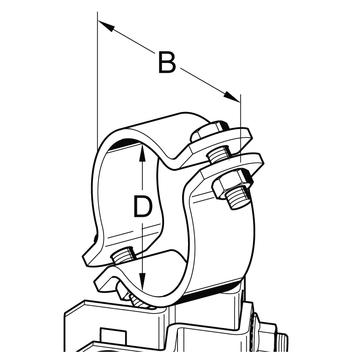

Supports without insulation insert

Pipe
NB
 Pipe
D
 Pipe Clamp
B [mm]
 Pipe Clamp
Material [mm]
 Hex. bolts
15 22 86 30 x 5 M10 x 40
20 27 93 30 x 5 M10 x 40
25 34 102 30 x 5 M10 x 40
32 43 114 30 x 5 M10 x 40
40 49 119 30 x 5 M10 x 40
50 61 136 40 x 5 M12 x 45
65 77 152 40 x 5 M12 x 45
80 89 165 40 x 5 M12 x 45
100 115 165 50 x 5 M12 x 50
125 140 183 50 x 5 M12 x 50
150 169 215 50 x 8 M12 x 55
200 220 252 50 x 8 M12 x 55
250 273 306 50 x 8 M12 x 55
300 324 347 60 x 8 M16 x 60
350 356 375 60 x 8 M16 x 60
400 407 423 70 x 8 M16 x 65
500 508 524 70 x 8 M16 x 65
600 610 626 70 x 8 M16 x 65

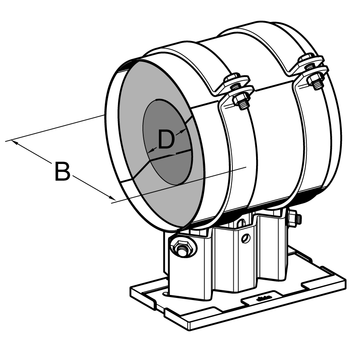

Supports with insulation insert

Pipe
NB
 Pipe
D
 Insulation
Thickness [mm]
 Insulation
Length [mm]
 Pipe Clamp
B [mm]
 Pipe Clamp
Material [mm]
 Hex. bolts
25 33.7 50 100 180 50 x 5 M12 x 50
32 42.4 50 100 187 50 x 5 M12 x 50
40 48.3 50 100 190 50 x 5 M12 x 50
50 60.3 50 100 199 50 x 5 M12 x 50
65 76.1 60 100 237 50 x 8 M12 x 55
80 88.9 60 100 245 50 x 8 M12 x 55
100 114.3 60 200 278 50 x 8 M12 x 55
125 139.7 60 200 295 50 x 8 M12 x 55
150 168.3 60 200 319 60 x 8 M16 x 60
200 219.1 60 200 363 60 x 8 M16 x 60
250 273.0 60 200 412 60 x 8 M16 x 60
300 323.9 80 200 503 70 x 8 M16 x 65
