Rod Hangers
Application

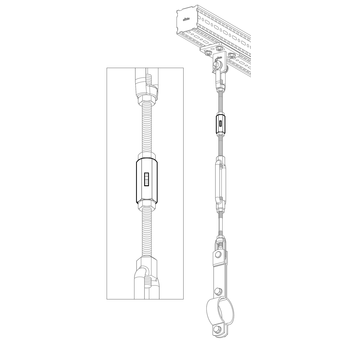

Joining element for extending threaded roada at Suspension heights of the Sikla load chains of more than 3 meters threaded length. Version with Slot for visual inspection of the screw depths of the two threaded Ends. The HCP surface of the Extension sleeve is used in combination with other HCP components a continuous corrosion protection for all Indiviual components. The extension sleeve is designed for with two Hexagon nuts (not included).
Technical Data
| Type | max. perm. tensile load [kN] |
|---|---|
| M10 | 18,6 |
| M12 | 27,0 |
| M16 | 39,2 |
| Material: | Steel, HCP |
| Type | Length [mm] |
A/F | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|---|
| M10 x 30 | 30 | 17 mm | 0.04 | 100 | 116700 |
| M12 x 35 | 35 | 17 mm | 0.04 | 50 | 116701 |
| M16 x 40 | 40 | 22 mm | 0.07 | 50 | 116702 |
