siFramo 100
Application

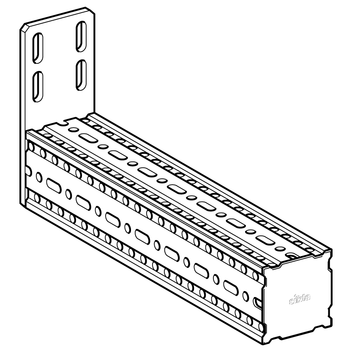

Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA and 4 x Self Forming Screw FLS. By means of the round holes in the base plate a direct connection to excisting cast-in channels is possible.
With the types F 100-80 and F 100-80-E a combination of Beam Section F 100 with F 80/80 is possible.
Installation

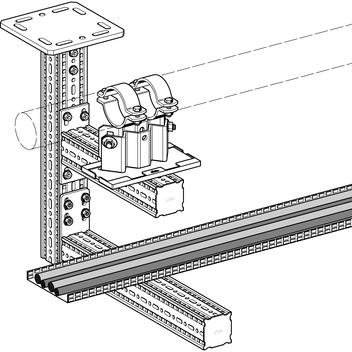

With 4 x Self Forming Screw FLS when fixed to another siFramo hollow-box-section. Alternatively with two suitable wall anchors through holes “A” when fixed directly to building structure.
Technical Data

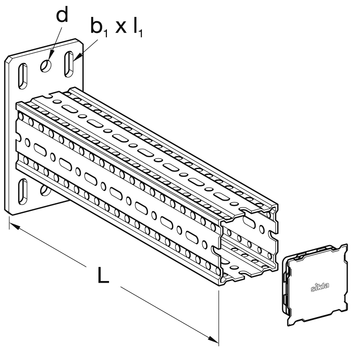

| Type | Dimensions of base plate [mm] | L [mm] | d [mm] | b1 x l1 [mm] |
|---|---|---|---|---|
| AK F 100-400 | 210 x 100 x 8 | 400 | 14 | 11 x 20 |
| AK F 100-800 | 210 x 100 x 8 | 800 | 14 | 11 x 20 |
| AK F 100-1200 | 210 x 100 x 8 | 1200 | 14 | 11 x 20 |
| AK F 100-E - 600 | 185 x 100 x 8 | 600 | - | 11 x 20 |
| AK F 100-80 - 400 | 190 x 100 x 8 | 400 | 14 | 11 x 20 |
| AK F 100-80 - 800 | 190 x 100 x 8 | 800 | 14 | 11 x 20 |
| AK F 100-80-E - 600 | 170 x 100 x 8 | 600 | - | 11 x 20 |
| Configuration: | Plate welded to Beam Section TP F 100 AK F 100-80 with Beam Section F 80 |
| Material: | Steel, HCP |
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/downloads)
ETA-24/0471
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| AK F 100-400 | 5.7 | 1 | 113068 |
| AK F 100-800 | 10.1 | 1 | 113069 |
| AK F 100-1200 | 14.7 | 1 | 113419 |
| AK F 100-E-600 | 7.8 | 1 | 113070 |
| AK F 100-80 - 400 | 3.6 | 1 | 117143 |
| AK F 100-80 - 800 | 6.0 | 1 | 117144 |
| AK F 100-80-E - 600 | 4.7 | 1 | 117254 |
