siFramo 100/160
Application

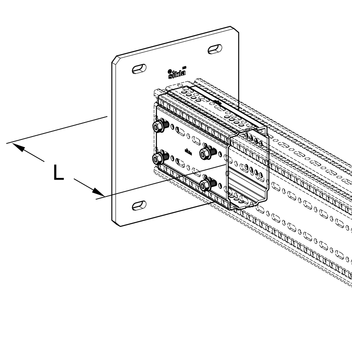

Plug-in component designed to create a square endplate at the open end of a Beam Section TP F100 or a Beam Bracket.
Installation
Depending on the situation, different options are recommended:
| a) | Directly to building structure: 4 x suitable wall anchors and 4 Self Forming Screws FLS applied to the square/octagonal insert. |

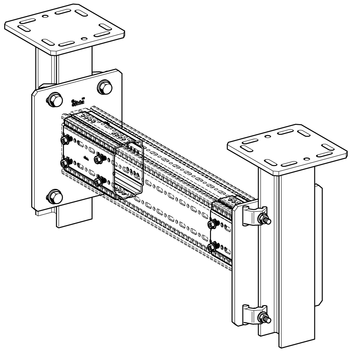

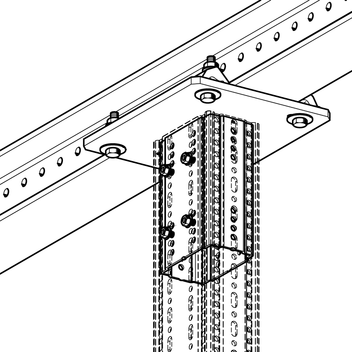

| b) | To traditional steel beams between 80 – 300 mm flange dimensions: 1x Assembly Set 5P M12 S, M16 S and 4 Self Forming Screws FLS applied to the square/octagonal insert. |
Technical Data
| Type | For flange width [mm] | Dimensions of base plate [mm] | Slots in base plate for | H [mm] |
|---|---|---|---|---|
| WBD F 100/160-121/160 | 121 - 160 | 320 x 260 x 12 | M12 | 232 |
| WBD F 100/160-161/200 | 161 - 200 | 320 x 310 x 12 | M16 | 232 |
| WBD F 100/160-201/300 | 201 - 300 | 420 x 220 x 12 | M16 | 232 |
| Configuration: | Base plate welded to square F 100/60 |
| Material: | |
| Plate: | Steel, HCP |
| Square F 100: | Steel, HCP |
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/service/downloads)
ETA-24/0471
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| WBD F100/160-121/160 | 10.53 | 1 | 113098 |
| WBD F100/160-161/200 | 11.95 | 1 | 113099 |
| WBD F100/160-201/300 | 11.14 | 1 | 113100 |
