siFramo 80
Application

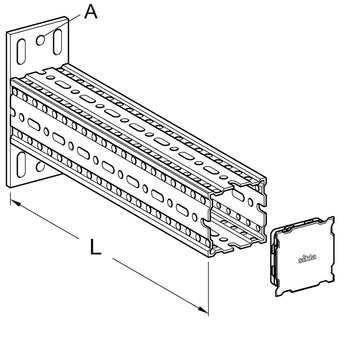

Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA and 4 x Self Forming Screw FLS. By means of the round holes in the base plate a direct connection to excisting cast-in channels is possible.
Scope of delivery
With pre-assembled End Cap ADK F 80
Installation
With 4 x Self Forming Screw FLS when fixed to another siFramo hollow-box-section. Alternatively with two suitable wall anchors through holes “A” when fixed directly to building structure.
Technical Data
| Type | L [mm] | Dimensions of base plate [mm] | Slotted holes base plate [mm] | A [mm] |
|---|---|---|---|---|
| AK F 80-400 | 400 | 190 x 80 x 8 | 20 x 11 | 14 |
| AK F 80-800 | 800 | 190 x 80 x 8 | 20 x 11 | 14 |
| AK F 80-E-600 | 600 | 165 x 80 x 8 | 20 x 11 | - |
| Configuration: | Plate welded to Beam Section TP F 80 |
| Material: | |
| Plate: | Steel, HCP |
| Beam Section: | Steel, HCP |
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/downloads)
ETA-24/0471
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| AK F 80-400 | 3.4 | 1 | 192764 |
| AK F 80-800 | 5.8 | 1 | 192771 |
| AK F 80-E-600 | 4.5 | 1 | 110370 |
