siFramo 80/30
Application

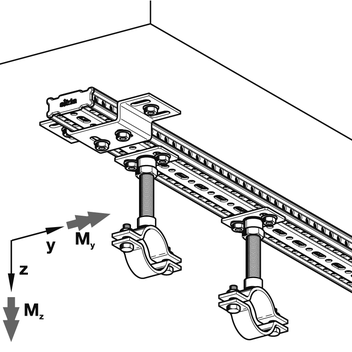

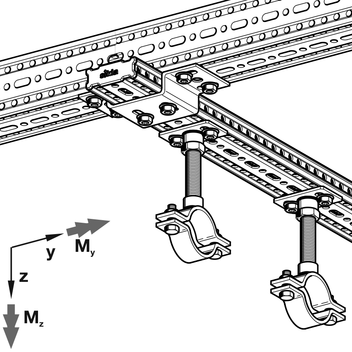

Form-fitting comprehensive supporting of beam section TP F 80/30. Alternatively the Beam Section Holder TPH may be used to connect only one beam section to an even surface with suitable wall anchors or with cast-in channel accessories. Furthermore the TPH F 80/30 can be used as a cross connection of the beam section TP F 80 or TP F 80/30.
Installation
Connection to the beam section TP F 80 or TP F 80/30 with 6 x Self forming screws FLS in all elongated holes.
Connection to building surface either with approved anchors with connection thread M10 or accessories for cast-in channels using the holes d1.
Technical Data

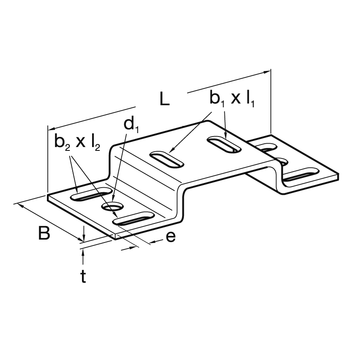

| Type | L x w x th [mm] | ø d1 [mm] | b1 x l1 [mm] | b2 x l2 [mm] |
|---|---|---|---|---|
| TPH F 80/30 C | 199 x 80 x 4 | 14 | 11 x 20 | 11 x 20 |
| Type | Fy [kN] | Fz [kN] | My [kNm] | Mz [kNm] |
|---|---|---|---|---|
| TPH F 80/30 C | 24.1 | 20.8 | 1.0 | 0.9 |
| Material: | Steel, hcp or hot dipped galvanised |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| TPH F 80/30 C | 0.5 | 10 | 116673 |
