Structural Elements 100
Application
Element for vertical assembly on concrete or steel beams, especially for risers.

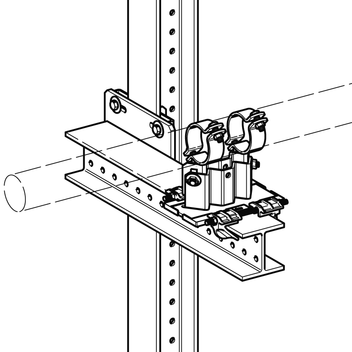

In the QKO variant, the flange surface is parallel to the base plate and welded on one side with a support plate. The variant QKOq has the support turned by 90° and thus fixed vertically on the base plate.
Installation
Depending on the situation, different options are recommended:
| a) | Fixing on concrete by means of 4 heavy duty anchors M12 |
| b) | Frictional connection to steel beams (flange width 80 - 120 mm) by means of Assembly Set 5P M12 S. |

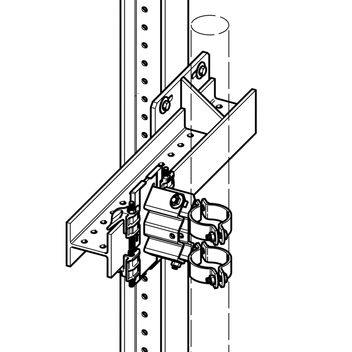

| c) | Interlocking connection to TKO 100 or 120 by means of Bracket Plates FV 100/120 |
Technical Data
| Configuration: | Base plate and support flange welded to IPBI 100 |
| Material: | Steel, hot-dipped galvanised |
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/service/downloads)

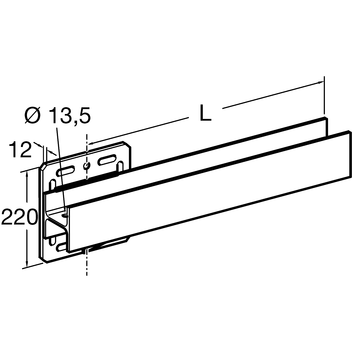

| Type | L [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|
| QKO 100 x 600 | 600 | 16.1 | 1 | 183917 |
| QKO 100 x 1000 | 1000 | 24.1 | 1 | 183926 |
| QKO 100q x 600 | 600 | 15.6 | 1 | 183935 |
| QKO 100q x 1000 | 1000 | 23.5 | 1 | 183944 |
