Structural Elements 120
Application
In combination with Beam Bracket TKO 120, the End Support enables the construction of crossbars, as well as further conjuctions between building structure and steel construction. By means of oblong holes a simple compensation of structural deviations is possible from up to 50 mm.
Scope of delivery
End Support STA 120
Accessories:
4 Hexagon bolts M12 x 40
8 Washers

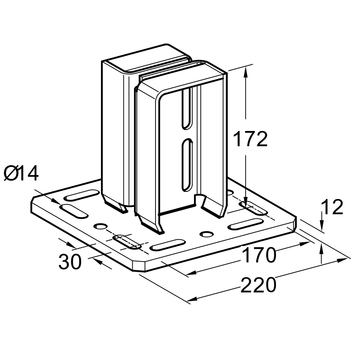

Technical Data
| Thickness of base plate [mm] | Slot in base for |
|---|---|
| 220 x 220 x 12 | M12 |
| Material: | |
| STA 120: | Steel, hot-dipped galvanised |
| Bolts: | Steel, class 8.8, hot-dipped galvanised |
| Nuts: | Steel, class 8, hot-dipped galvanised |
| Washers: | Steel, hot-dipped galvanised |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| STA 120 | 6.8 | 1 | 193211 |
