Assembly System siMetrix 46
Application

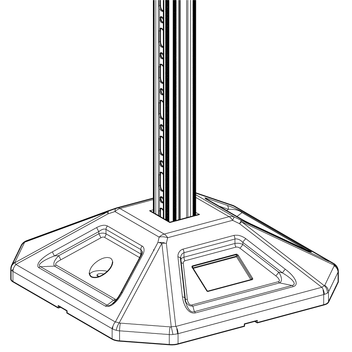

Integrated foot plate made of synthetic rubber. Providing a non-penetrative supporting base for low level siMetrix 46 structures. Suitable for equipment, pipes, ventilation ducts or walkways.
Installation
Insert the Profile PRO 46 into the Insulated Foot's slot. No fixing required.
Technical Data
| Type | max. perm. pressure load FN [kN] | Height [mm] | Insertion depth [mm] |
|---|---|---|---|
| SQF 350 | 16 | 100 | 60 |
| SQF 500 | 16 | 130 | 90 |
Tests to determine the coefficient of friction shall be carried out by the customer. Depending on the roofing material the customer shall decide if an additional separation layer (e.g. fleece) is necessary.
| Material: | Styrene butadiene rubber |
| Type | Plate dimensions [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|
| SHB SQF 46 - 350 | 350 x 350 | 5.00 | 1 | 803651 |
| SHB SQF 46 - 500 | 500 x 500 | 13.50 | 1 | 803652 |
