Assembly System siMetrix 46
Application
Slide Set for single and double guided brackets on siMetrix Profile PRO 46, or directly to the structure. Connection options vary on the load, using either the 3G thread: M10, M16 and 1/2".
Installation
For supported installations from DN 100 upwards, a locking nut must be mounted on the 3G triple thread nut for both Slide Sets.
Technical Data

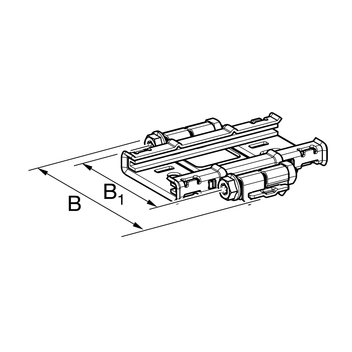

| Type | L [mm] | H [mm] | L1 [mm] | B [mm] | B1 [mm] | Mi | Mi,1 | Ma |
|---|---|---|---|---|---|---|---|---|

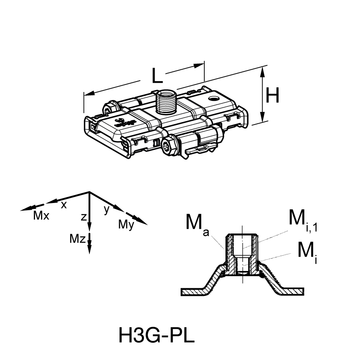

| H3G-PL 46 | 155 | 43 | - | 138 | 109 | M10 | M16 | 1/2" |

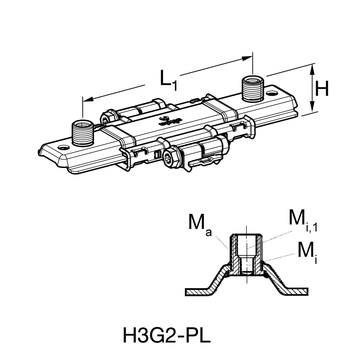

| H3G2-PL 46 | 280 | 43 | 200 | 138 | 109 | M10 | M16 | 1/2" |
| Typ | Vz,perm. [kN] | - Vz,perm. [kN] | ± Mx,perm. [kNm] |
|---|---|---|---|
| GS H3G-PL 46 | 11,04 | 3,45 | 0,13 |
| GS H3G2-PL 46 | 11,04 | 3,45 | 0,13 |
| Permanent temperature range Slide Set: | 130°C |
| Static friction coefficient µ0: | 0,07 |
| Sliding friction coefficient µ: | 0,07 |
| Tightening torque siMetrix screws: | 15 Nm |
| Material: | |
| Slide element and retaining plate: | Steel, HCP |
| Slide bar: | Polyamide (glass-fibre reinforced), MoS2 coated |

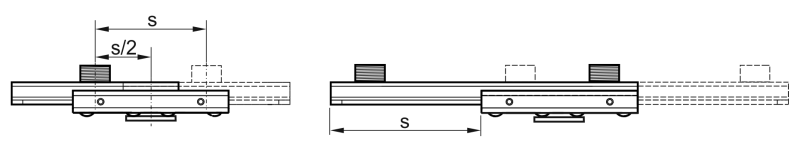

| Type | max. lever arm [mm] | max. glide path s [mm] |
|---|---|---|
| H3G-PL 46 | 500 | 100 |
| H3G2-PL 46 | 500 | 140 |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| H3G-PL 46 | 0.63 | 10 | 803868 |
| H3G2-PL 46 | 0.87 | 10 | 803869 |
