Assembly System siMetrix 46
Application
U Bolt RUB 46 for fastening pipes in utility systems to the Profile PRO 46. U Bolts are used as a fixed point or as a guide for horizontal and vertical pipes.
Scope of delivery
Completely pre-assembled as a set, consisting of:
2 x Profile Clip MPK 46
2 x nuts on each side
1 x U Bolt with sheath (for electro-chemical separation)
1 x Slide Support GA 41-46 (enclosed)
Installation

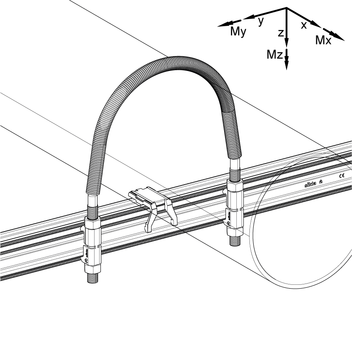

When used as a guide bearing, nuts arranged on both sides at the top and bottom of the round steel bracket must be tightened. The pipe should remain freely movable.
When used as a fixed point, first tighten the lower nuts until the pipe is clamped. Then tighten the upper nuts. For fixed points, the permissible forces of the structural connection and the bending loads of the U Bolt must not be exceeded.
Technical Data
| Type | ± Vx,perm. [kN] | ± Vy,perm. [kN] | - Vz,perm. [kN] |
|---|---|---|---|
| RUB 46 | 1,05 | 1,08 | 5,43 |
| Material: | Steel, HCP |
| U-bolt sheath: | PA 6.0, halogen-free, UV-resistant |
| Type | NB | B [mm] |
L1 [mm] |
L2 [mm] |
Thread | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|---|---|---|---|

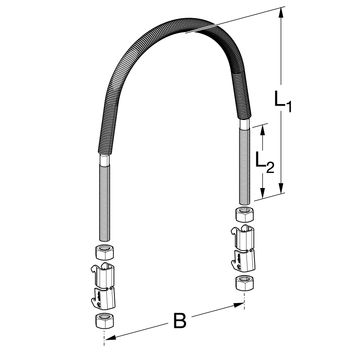

| 21.3 mm | 15 / 1/2" | 42 | 87 | 71 | M8 | 0.13 | 50 | 805053 |
| 26.9 mm | 20 / 3/4" | 47 | 92 | 73 | M8 | 0.14 | 50 | 805054 |
| 33.7 mm | 25 / 1" | 54 | 99 | 77 | M8 | 0.14 | 50 | 805055 |
| 42.4 mm | 32 / 1 1/4" | 62 | 107 | 80 | M8 | 0.15 | 50 | 805056 |
| 48.3 mm | 40 / 1 1/2" | 70 | 115 | 80 | M8 | 0.15 | 50 | 805057 |
| 60.3 mm | 50 / 2" | 84 | 130 | 90 | M10 | 0.26 | 50 | 805058 |
| 76.1 mm | 65 / 2 1/2" | 100 | 146 | 90 | M10 | 0.28 | 50 | 805059 |
| 88.9 mm | 80 / 3" | 114 | 160 | 90 | M10 | 0.30 | 50 | 805060 |
| 108 mm | 136 | 180 | 95 | M12 | 0.46 | 25 | 805061 | |
| 114 mm | 100 / 4" | 142 | 186 | 95 | M12 | 0.47 | 25 | 805062 |
| 133 mm | 161 | 205 | 95 | M12 | 0.51 | 25 | 805063 | |
| 139 mm | 125 / 5" | 168 | 212 | 95 | M12 | 0.52 | 25 | 805064 |
| 159 mm | 187 | 231 | 95 | M12 | 0.55 | 10 | 805065 | |
| 168 mm | 150 / 6" | 198 | 242 | 95 | M12 | 0.57 | 10 | 805066 |
| 219 mm | 200 / 8" | 247 | 291 | 95 | M12 | 0.66 | 10 | 805067 |
