Pipe Shoes
Application

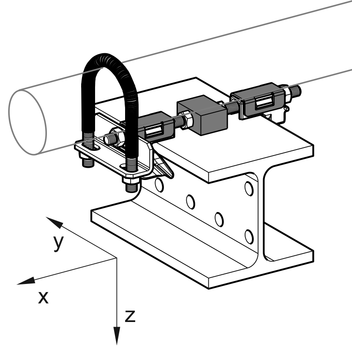

Fixed Point for attachment of steel or stainless steel pipes of DN 15 up to DN 50 on steel beams with width of 80 up to 300 mm and max. flange thickness of 20 mm.
Scope of delivery
Preassembled Fixed Point including contact corrosion protection by means of a U-bolt sheath and PA slide bearing blocks. U-bolt with 2 hex nuts to secure position.
Guided Support set contains
2 clamping hooks with slide bearers
1 slide bar
1 connecting rod M10
1 U-Bolt fixing plate
4 nuts M10
Installation
Position the preassembled clamping hooks onto the beam flange and tighten the nuts (to 10 Nm). For beam width < 100mm both nuts of the middle of the PA bearing blocks have to be removed. Fasten U-bolt to U-Bolt fixing plate with the hex nuts (to 30 Nm). The pipe is pressed against the PA bearing blocks by the clamping action of the U-bolt thus ensuring a fixed position of the pipe.
Technical Data

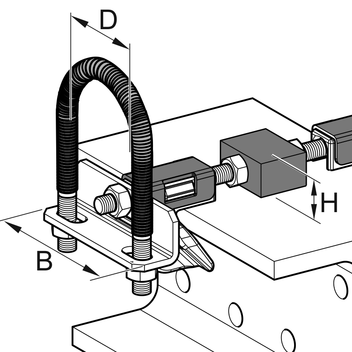

| DN | D [mm] | H [mm] | B [mm] |
|---|---|---|---|
| 15 | 22 | 20 | 72 |
| 20 | 27 | 20 | 72 |
| 25 | 34 | 20 | 72 |
| 32 | 42 | 20 | 97 |
| 40 | 48 | 20 | 97 |
| 50 | 60 | 20 | 97 |
| Type | for flange width [mm] |
|---|---|
| 80/120 | 80 - 120 |
| 140/160 | 121 - 160 |
| 180/220 | 161 - 220 |
| 240/260 | 221 - 260 |
| 280/300 | 261 - 300 |
| Material: | |
| U-bolt | Steel, HCP |
| U-bolt sheath: | Polyamide 6.0, free of halogens |
| sheet metal parts: | Steel, HCP |
| Rod, nuts: | Steel, HCP |
| PA block: | Polyamide 6.0, 30 % glass fibre reinforced, black |
| Temperature range: | -20 to +130° C (at the PA block and shrinking tube) |
* in stock
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| XR - H 20 DN 15 - 80/120 | 0.9 | 10 | 113744 |
| XR - H 20 DN 15 - 140/160 | 1.0 | 1 | 113745 |
| XR - H 20 DN 15 - 180/220 | 1.0 | 1 | 113746 |
| XR - H 20 DN 15 - 240/260 | 1.1 | 1 | 113747 |
| XR - H 20 DN 15 - 280/300 | 1.1 | 1 | 113748 |
| XR - H 20 DN 20 - 80/120 | 0.9 | 10 | 113749 |
| XR - H 20 DN 20 - 140/160 | 1.0 | 1 | 113750 |
| XR - H 20 DN 20 - 180/220 | 1.0 | 1 | 113751 |
| XR - H 20 DN 20 - 240/260 | 1.1 | 1 | 113752 |
| XR - H 20 DN 20 - 280/300 | 1.1 | 1 | 113753 |
| XR - H 20 DN 25 - 80/120 * | 0.9 | 10 | 113754 |
| XR - H 20 DN 25 - 140/160 | 1.0 | 1 | 113755 |
| XR - H 20 DN 25 - 180/220 | 1.0 | 1 | 113756 |
| XR - H 20 DN 25 - 240/260 | 1.1 | 1 | 113757 |
| XR - H 20 DN 25 - 280/300 | 1.1 | 1 | 113758 |
| XR - H 20 DN 32 - 80/120 | 0.9 | 10 | 113760 |
| XR - H 20 DN 32 - 140/160 | 1.0 | 1 | 113761 |
| XR - H 20 DN 32 - 180/220 | 1.1 | 1 | 113762 |
| XR - H 20 DN 32 - 240/260 | 1.1 | 1 | 113763 |
| XR - H 20 DN 32 - 280/300 | 1.2 | 1 | 113764 |
| XR - H 20 DN 40 - 80/120 | 0.9 | 10 | 113765 |
| XR - H 20 DN 40 - 140/160 | 1.0 | 1 | 113766 |
| XR - H 20 DN 40 - 180/220 | 1.1 | 1 | 113767 |
| XR - H 20 DN 40 - 240/260 | 1.1 | 1 | 113768 |
| XR - H 20 DN 40 - 280/300 | 1.2 | 1 | 113769 |
| XR - H 20 DN 50 - 80/120 * | 1.0 | 10 | 113770 |
| XR - H 20 DN 50 - 140/160 | 1.1 | 1 | 113771 |
| XR - H 20 DN 50 - 180/220 | 1.1 | 1 | 113772 |
| XR - H 20 DN 50 - 240/260 | 1.2 | 1 | 113773 |
| XR - H 20 DN 50 - 280/300 | 1.2 | 1 | 113774 |
