Pipe Shoes
Application

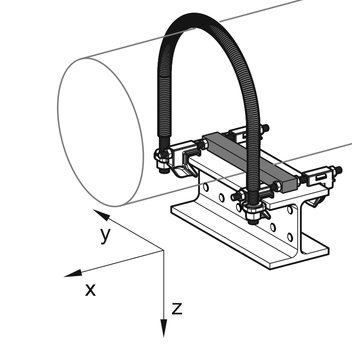

Guided Support for attachment of steel or stainless steel pipes of DN 65 up to DN 300 on steel beams with width of 80 up to 300 mm and max. flange thickness of 20 mm.
Scope of delivery
Preassembled Guided Support including contact corrosion protection by means of a U-bolt sheath and PA slide bearing blocks. U-bolt with welded-on semi-washers and 2 hexagon nuts to secure position.
Guided Support set contains:
4 clamping hooks
1 slide bar
2 connecting rods M10
8 nuts M10
Installation
Position the preassembled clamping hooks onto the beam flange and tighten the nuts (to 10 Nm). For beam width < 100mm the four nuts of the PA bearing blocks have to be removed. Fasten U-bolt to Hook Sleeves with the hex nuts (to 15 Nm).
The pipe slides directly on the PA bearing blocks. Axial guiding of the pipe is ensured by the U-bolt.
Technical Data

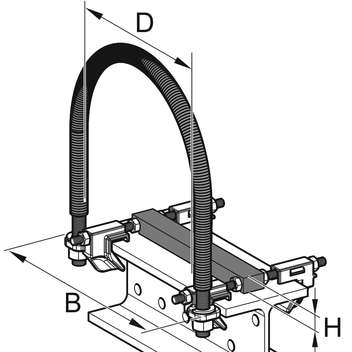

| DN | D [mm] | H [mm] | B [mm] |
|---|---|---|---|
| 65 | 76 | 20 | 124 |
| 80 | 89 | 20 | 136 |
| 100 | 114 | 20 | 162 |
| 125 | 140 | 20 | 190 |
| 150 | 170 | 20 | 218 |
| 175 | 194 | 20 | 244 |
| 200 | 219 | 20 | 270 |
| 225 | 245 | 20 | 300 |
| 250 | 273 | 20 | 328 |
| 300 | 324 | 20 | 378 |
| Type | for flange width [mm] |
|---|---|
| 80/120 | 80 - 120 |
| 140/160 | 121 - 160 |
| 180/220 | 161 - 220 |
| 240/260 | 221 - 260 |
| 280/300 | 261 - 300 |
| Material: | |
| U-Bolt | Steel, HCP |
| U-Bolt sheath: | Polyamide 6.0, free of halogens |
| Sheet metal parts: | Steel, HCP |
| Rods, nuts: | Steel, HCP |
| PA block: | Polyamide 6.0, 30 % glass fibre reinforced, black |
| Temperature range: | -20 to +130° C (at the PA block and shrinking tube) |
* in stock
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| FR - H 20 DN 65 - 80/120 | 1.7 | 10 | 113691 |
| FR - H 20 DN 65 - 140/160 | 1.9 | 1 | 113692 |
| FR - H 20 DN 65 - 180/220 | 2.0 | 1 | 113693 |
| FR - H 20 DN 65 - 240/260 | 2.1 | 1 | 113694 |
| FR - H 20 DN 65 - 280/300 | 2.1 | 1 | 113695 |
| FR - H 20 DN 80 - 80/120 * | 1.8 | 5 | 113696 |
| FR - H 20 DN 80 - 140/160 | 1.9 | 1 | 113697 |
| FR - H 20 DN 80 - 180/220 | 2.1 | 1 | 113699 |
| FR - H 20 DN 80 - 240/260 | 2.2 | 1 | 113700 |
| FR - H 20 DN 80 - 280/300 | 2.3 | 1 | 113701 |
| FR - H 20 DN 100 - 80/120 * | 1.8 | 5 | 113702 |
| FR - H 20 DN 100 - 140/160 | 2.0 | 1 | 113703 |
| FR - H 20 DN 100 - 180/220 | 2.1 | 1 | 113705 |
| FR - H 20 DN 100 - 240/260 | 2.2 | 1 | 113706 |
| FR - H 20 DN 100 - 280/300 | 2.3 | 1 | 113707 |
| FR - H 20 DN 125 - 80/120 * | 1.9 | 5 | 113708 |
| FR - H 20 DN 125 - 140/160 | 2.1 | 1 | 113709 |
| FR - H 20 DN 125 - 180/220 | 2.2 | 1 | 113710 |
| FR - H 20 DN 125 - 240/260 | 2.3 | 1 | 113711 |
| FR - H 20 DN 125 - 280/300 | 2.4 | 1 | 113712 |
| FR - H 20 DN 150 - 80/120 * | 2.0 | 5 | 113713 |
| FR - H 20 DN 150 - 140/160 | 2.2 | 1 | 113714 |
| FR - H 20 DN 150 - 180/220 | 2.3 | 1 | 113715 |
| FR - H 20 DN 150 - 240/260 | 2.4 | 1 | 113716 |
| FR - H 20 DN 150 - 280/300 | 2.5 | 1 | 113717 |
| FR - H 20 DN 175 - 80/120 | 2.1 | 5 | 113718 |
| FR - H 20 DN 175 - 140/160 | 2.3 | 1 | 113719 |
| FR - H 20 DN 175 - 180/220 | 2.4 | 1 | 113720 |
| FR - H 20 DN 175 - 240/260 | 2.5 | 1 | 113721 |
| FR - H 20 DN 175 - 280/300 | 2.5 | 1 | 113722 |
| FR - H 20 DN 200 - 80/120 * | 2.1 | 5 | 113723 |
| FR - H 20 DN 200 - 140/160 | 2.3 | 1 | 113724 |
| FR - H 20 DN 200 - 180/220 | 2.4 | 1 | 113725 |
| FR - H 20 DN 200 - 240/260 | 2.5 | 1 | 113726 |
| FR - H 20 DN 200 - 280/300 | 2.6 | 1 | 113727 |
| FR - H 20 DN 225 - 80/120 | 2.6 | 5 | 113728 |
| FR - H 20 DN 225 - 140/160 | 2.8 | 1 | 113729 |
| FR - H 20 DN 225 - 180/220 | 2.9 | 1 | 113730 |
| FR - H 20 DN 225 - 240/260 | 2.9 | 1 | 113732 |
| FR - H 20 DN 225 - 280/300 | 3.0 | 1 | 113733 |
| FR - H 20 DN 250 - 80/120 | 2.7 | 5 | 113734 |
| FR - H 20 DN 250 - 140/160 | 2.9 | 1 | 113735 |
| FR - H 20 DN 250 - 180/220 | 3.0 | 1 | 113736 |
| FR - H 20 DN 250 - 240/260 | 3.0 | 1 | 113737 |
| FR - H 20 DN 250 - 280/300 | 3.1 | 1 | 113738 |
| FR - H 20 DN 300 - 80/120 | 2.8 | 5 | 113739 |
| FR - H 20 DN 300 - 140/160 | 3.0 | 1 | 113740 |
| FR - H 20 DN 300 - 180/220 | 3.2 | 1 | 113741 |
| FR - H 20 DN 300 - 240/260 | 3.2 | 1 | 113742 |
