Pipe Shoes
Application
Pipe Shoe - Double Clamp for pipes on suitable surfaces. Height-adjustable in steps of 2.5 mm.
When resting on steel beams, a minimum flange width of 80 mm is recommended.
These pipe shoes are designed for use in the temperature range 300°C to 500°C. The material-dependent correction values k are used for determining the loads at real operating temperatures. To reach the expected temperatures, according to DIN EN 13480-3, Table 13.11.2–2 must be considered for the substructure.
Scope of delivery

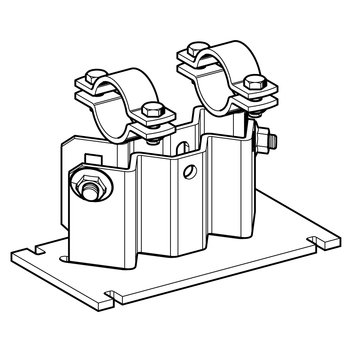

Upper and lower part are bolted together allowing height adjustment. In order to reduce the spacings of the lugs the pipe clamps from DN 100 are rotated by 45° (see illustration).
Technical Data
| Type | Height H as delivered [mm] | Height H Range [mm] |
|---|---|---|
| LC - HV 150 | 150 | 116 ... 168,5 |
| LC - HV 200 | 200 | 171 ... 223,5 |
Tightening torque screw connections:
| Clamping bolts | tightening torque [Nm] | height adjustment | tightening torque [Nm] |
|---|---|---|---|
| DN 15 - 40 | 40 | bolts in the bar | 80 |
| DN 50 - 200 | 50 | bolts in the bar | 80 |

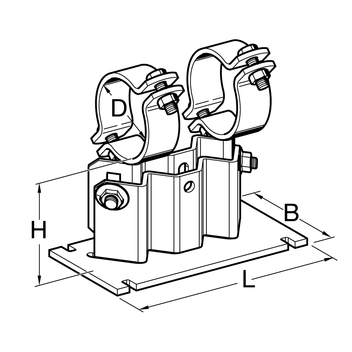

| Dimensions: | |
| Metal plate: | L = 250 mm x B = 100 mm |
| Material: | |
| Sheet metal parts: | EN 10028-2 - 16Mo3, heat-resistant, powder-coated, black |
| Bolts, Nuts of the height adjustment: | A4-80 |
| Bolts, Nuts of the clamps: | A4-70 |
| Media temperature: | 300°C up to 500°C |
| Salt spray test: | Resistance > 500 hours |
Approvals / Compliance
- Pipe Shoe - external monitoring (application/pdf, 626.1 KB)
Delivery time on request - Made-to-order goods.
| Type | D (pipe) [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|
| LC - HT HV 150 30-34 (DN 25) 1" | 30 - 34 | 4.0 | 1 | 801039 |
| LC - HT HV 150 40-44 (DN 32) 1 1/4" | 40 - 44 | 4.1 | 1 | 801041 |
| LC - HT HV 150 45-49 (DN 40) 1 1/2" | 45 - 49 | 4.2 | 1 | 801042 |
| LC - HT HV 150 57-61 (DN 50) 2" | 57 - 61 | 4.6 | 1 | 801045 |
| LC - HT HV 150 72-77 (DN 65) 2 1/2" | 72 - 77 | 4.8 | 1 | 801048 |
| LC - HT HV 150 84-89 (DN 80) 3" | 84 - 89 | 4.9 | 1 | 801050 |
| LC - HT HV 150 109-115 (DN 100) 4" | 109 - 115 | 5.5 | 1 | 801054 |
| LC - HT HV 150 134-140 (DN 125) 5" | 134 - 140 | 5.8 | 1 | 801058 |
| LC - HT HV 150 163-169 (DN 150) 6" | 163 - 169 | 7.8 | 1 | 801063 |
| LC - HT HV 150 215-221 (DN 200) 8" | 215 - 221 | 8.8 | 1 | 801071 |
| LC - HT HV 200 30-34 (DN 25) 1" | 30 - 34 | 4.6 | 1 | 801089 |
| LC - HT HV 200 40-44 (DN 32) 1 1/4" | 40 - 44 | 4.7 | 1 | 801091 |
| LC - HT HV 200 45-49 (DN 40) 1 1/2" | 45 - 49 | 4.8 | 1 | 801092 |
| LC - HT HV 200 57-61 (DN 50) 2" | 57 - 61 | 5.2 | 1 | 801095 |
| LC - HT HV 200 72-77 (DN 65) 2 1/2" | 72 - 77 | 5.3 | 1 | 801098 |
| LC - HT HV 200 84-89 (DN 80) 3" | 84 - 89 | 5.4 | 1 | 801100 |
| LC - HT HV 200 109-115 (DN 100) 4" | 109 - 115 | 6.1 | 1 | 801104 |
| LC - HT HV 200 134-140 (DN 125) 5" | 134 - 140 | 6.2 | 1 | 801108 |
| LC - HT HV 200 163-169 (DN 150) 6" | 163 - 169 | 8.4 | 1 | 801113 |
| LC - HT HV 200 215-221 (DN 200) 8" | 215 - 221 | 9.5 | 1 | 801121 |
