Pipe Shoes
Application
Pipe Shoe - Dual Base
For pipes on suitable surfaces. Height-adjustable in steps of 2.5 mm. When resting on steel beams, a minimum flange width of 80 mm is recommended.
Scope of delivery

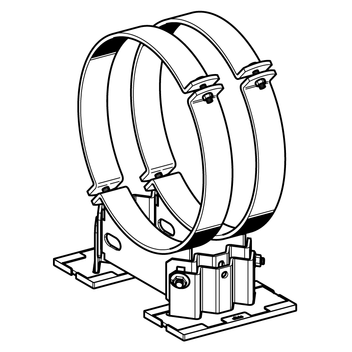

The upper part and the two lower parts are bolted together allowing height adjustment. The slide plates are fixed to the lower parts. In order to reduce the spacings of the lugs the pipe clamps from DN 300 are rotated by 45° (see illustration).
Installation
To guarantee that both sliding plates rest correctly, both webs must be adjusted to exactly the same height.
Technical Data

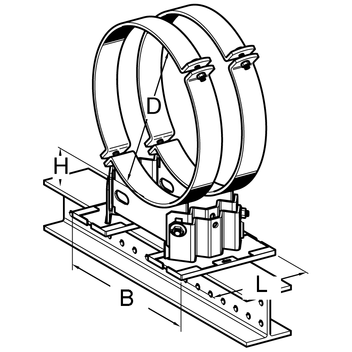

| Type | Height H as delivered [mm] | Height H range [mm] | B [mm] DN 200 - 300 | B [mm] DN 350 - 600 |
|---|---|---|---|---|
| LD - HV 90 | 90 | 88.5 ... 113.5 | 285 | 325 |
| LD - HV 150 | 150 | 116 ... 168.5 | 285 | 325 |
| LD - HV 200 | 200 | 171 ... 223.5 | 285 | 325 |
Tightening torque screw connections:
| Clamping bolts | tightening torque [Nm] | height adjustment | tightening torque [Nm] |
|---|---|---|---|
| DN 200 | 50 | bolts in the bar | 80 |
| DN 250 - 600 | 60 | bolts in the bar | 80 |
| Dimensions: | |
| Metal plate: | L = 250 mm |
| Slide plate incl.: | L = 256 mm |
| Material: | |
| Metal parts: | Steel, HCP |
| Bolts, Nuts: | Steel, HCP |
| Slide plate: | Polyamide 6.0, glass fibre reinforced, black |
| Temperature slide plate: | -20°C to +130°C |
| Media temperature tf : | -20°C to +300°C (if tf > 270°C, remove slide plate) |
Approvals / Compliance
- Pipe Shoe - external monitoring (application/pdf, 626.1 KB)
- Overview "All Pipe Shoes LD - HV" (application/pdf, 195.4 KB)
Further clamping ranges listed in the "PDF-Overview all Pipe Shoes".
Note: Pipe shoes HV 200 and outside the DN range - minimum quantity and delivery time on request.
| Type | D (pipe) [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|
| LD - HV 90 215-221 (DN 200) 8" | 215 - 221 | 11.9 | 1 | 112398 |
| LD - HV 90 266-273 (DN 250) 10" | 266 - 273 | 14.5 | 1 | 112399 |
| LD - HV 90 317-324 (DN 300) 12" | 317 - 324 | 15.7 | 1 | 112400 |
| LD - HV 90 349-356 (DN 350) 14" | 349 - 356 | 16.6 | 1 | 110098 |
| LD - HV 90 397-407 (DN 400) 16" | 397 - 407 | 19.0 | 1 | 110099 |
| LD - HV 90 498-508 (DN 500) 20" | 498 - 508 | 22.4 | 1 | 110100 |
| LD - HV 90 600-610 (DN 600) 24" | 600 - 610 | 25.1 | 1 | 110101 |
| LD - HV 150 215-221 (DN 200) 8" | 215 - 221 | 13.2 | 1 | 112401 |
| LD - HV 150 266-273 (DN 250) 10" | 266 - 273 | 15.9 | 1 | 112402 |
| LD - HV 150 317-324 (DN 300) 12" | 317 - 324 | 17.0 | 1 | 112403 |
| LD - HV 150 349-356 (DN 350) 14" | 349 - 356 | 18.1 | 1 | 110102 |
| LD - HV 150 397-407 (DN 400) 16" | 397 - 407 | 20.4 | 1 | 110103 |
| LD - HV 150 498-508 (DN 500) 20" | 498 - 508 | 24.1 | 1 | 110104 |
| LD - HV 150 600-610 (DN 600) 24" | 600 - 610 | 26.4 | 1 | 110105 |
| LD - HV 200 215-221 (DN 200) 8" | 215 - 221 | 14.3 | 1 | 112404 |
| LD - HV 200 266-273 (DN 250) 10" | 266 - 273 | 16.9 | 1 | 112405 |
| LD - HV 200 317-324 (DN 300) 12" | 317 - 324 | 18.0 | 1 | 112406 |
| LD - HV 200 349-356 (DN 350) 14" | 349 - 356 | 19.0 | 1 | 110106 |
| LD - HV 200 397-407 (DN 400) 16" | 397 - 407 | 21.4 | 1 | 110107 |
| LD - HV 200 498-508 (DN 500) 20" | 498 - 508 | 24.8 | 1 | 110108 |
| LD - HV 200 600-610 (DN 600) 24" | 600 - 610 | 27.5 | 1 | 110109 |
