Structural Elements 100
Application

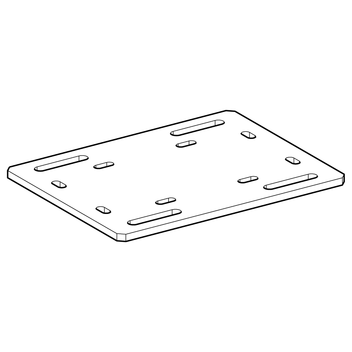

For the production of a cross-bracing within the Simotec beam systems 100 and 120. Connection to the primary steel structure with a flange width of up to 310 mm is also possible. According to the flange width select a suitable type.
Installation
Beam flange width 80 - 120:
Connect Beam Adapter Plate 80/120 with the help of 2 x Assembly Set MS 5P M12 (Part number 115843) onto the crossing steel beam. Assembly Sets must be ordered separately.

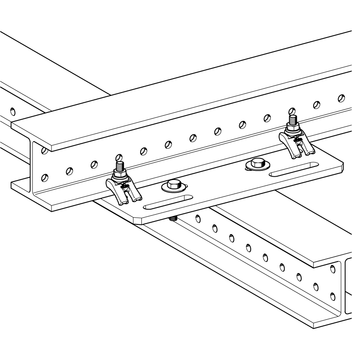

Beam flange width 121 - 160:
Connect Beam Adapter Plate 121/310 with the help of 2 x Assembly Set MS 5P M12 (Part number 115843) onto the crossing steel beam. Assembly Sets must be ordered separately.

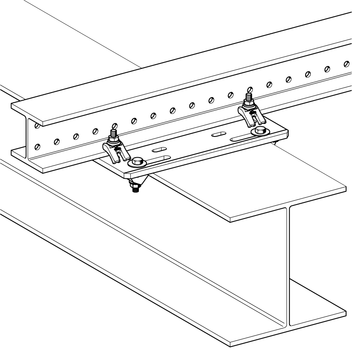

Beam flange width 161 - 310:
Connect Beam Adapter Plate 121/310 with the help of 1 x Assembly Set MS 5P M12 (Part number 115843) and 1 x Assembly Set MS 5P M16 (Part number 115844) onto the crossing steel beam. Assembly Sets must be ordered separately.
Technical Data
| Type | Dimension of Base Plate L x B x t [mm] | Connection to flange width [mm] | Tightening torque MA [Nm] / plus 90° revolution | Shear force load capacity Fx + Fy per TKZ (2 Assembly Sets) [kN] | Fz [kN] |
|---|---|---|---|---|---|
| 80/120 | 310 x 220 x 12 | 80 - 120 | 60 / 90° | 12.0 * | 52.6 |
| 121/310 | 420 x 320 x 12 | 121 - 160 | 60 / 90° | 12.0 * | 52.6 |
| 121/310 | 420 x 320 x 12 | 161 - 310 | 140 / 90° | 12.0 * | 52.6 |
* Loads are calculated for the worst event of flange thickness 30 mm (M12) or 40 mm (M16) and include a friction coefficient µadhesion = 0.20. A possibly operating tensile force Fz isn't included.
| Material: | Steel, HCP |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| 80/120 | 6.1 | 1 | 803575 |
| 121/310 | 11.7 | 1 | 803576 |
