Structural Elements 100
Application

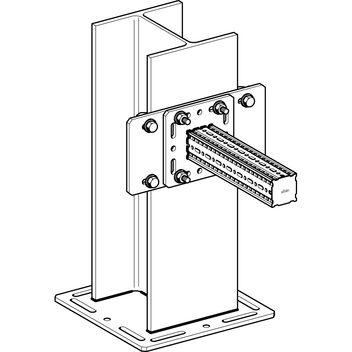

Interface element to enable the connection of standard endplates of Beam Brackets TKO F80 or F100, TKO 100 or 120 to primary steel with flange width >120 mm.

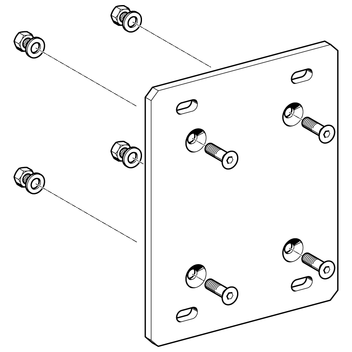

Scope of delivery
Joining Plate AP
4 Countersink Screws M12 x 40
4 Hexagon Nuts M12
4 Sicherungsscheiben
Installation

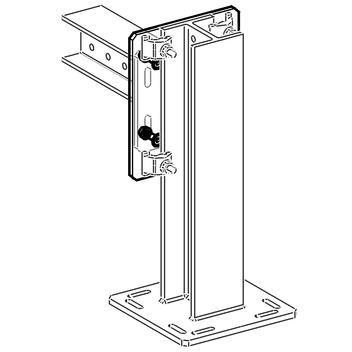

Connect the Joining Plate AP to the Beam Bracket TKO’s end plate by using the accessories above. Then continue with either heavy-duty anchors or Assembly Set 5P/Beam Clips as required by the building structure.
Technical Data
| Type | Dimension of Base Plate L x B [mm] | Perforation for | Connection to flange width [mm] |
|---|---|---|---|
| AP 121/160 | 320 x 260 x 12 | M12 | 121 - 160 |
| AP 161/200 | 320 x 310 x 12 | M16 | 161 - 200 |
| AP 201/240 | 320 x 360 x 12 | M16 | 201 - 240 |
| AP 241/310 | 420 x 220 x 12 | M16 | 241 - 310 |
| Material: | |
| Joining Plate: | Steel, hot-dipped galvanised |
| Bolts: | Steel DIN 7991, class 8.8, Dacromet/delta seal |
| Nuts: | Steel, class 8, hot-dipped galvanised |
| Washers: | Steel, hot-dipped galvanised |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| AP 121/160 | 7.7 | 1 | 183953 |
| AP 161/200 | 9.3 | 1 | 183962 |
| AP 201/240 | 10.4 | 1 | 116534 |
| AP 241/310 | 8.4 | 1 | 117767 |
